    Multi-Language FOIF RTS112SR10 Reflectorless Total Station For Surveying Instrument

    Multi-language FOIF RTS112SR10 Reflectorless Total Station For Surveying Instrument

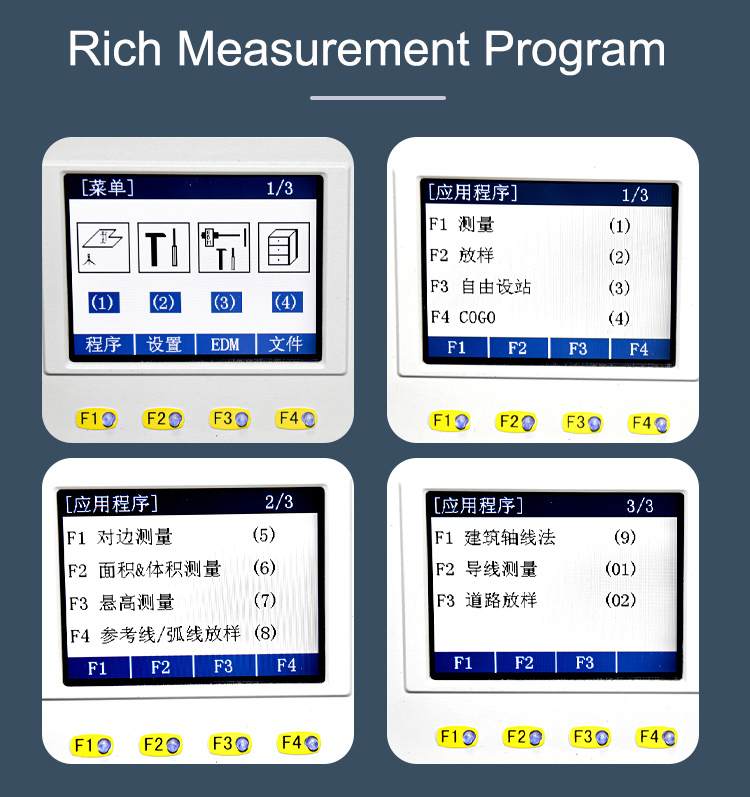

    FOIF high-brightness color screen intelligent total station, built-in large-capacity memory and various application measurement programs, powerful, stable performance, easy to use. It is suitable for survey work such as building stakeout, road stakeout, topographic cadastral survey and control point survey. It provides surveyors with an innovative, complete and integrated digital solution for field surveying and mapping, which is suitable for integrated internal and external design and construction and digital mapping, building construction, road stakeout, topographic cadastral survey and control point survey. Can meet all your job needs.


    Product Parameters
    Telescope
    ModelRTS112SR10+RTS342R10RTS112E
    ImagingPositive ImagePositive ImagePositive Image
    Effective Aperture of Objective Lens45mm48mm45mm
    Magnification Ratio30X30X30X
    Angle of View1°30'1°30'1°30'
    Resolution Ratio3"3"3.5"
    Minimum Focus Distance1.0m1.0m1.0m
    Distance Measurement
    Accuracy±(2mm+2X10-6·D)±(2mm+2X10-6·D)±(2mm+2X10-6·D)
    Distance Measurement1000m/no prism
    1200m/radiating film
    6000m/single prism
    1000m/no prism
    1200m/radiating film
    6000m/single prism
    1000m/no prism
    1200m/radiating film
    5000m/single prism
    Angle Measurement
    Angle Measurement MethodEncoding dialEncoding dialEncoding dial
    Angle Measurement Accuracy2"2"2"
    Minimum Reading1"0.1"1"
    Compensator
    Compensation Range±3'±6'±3'

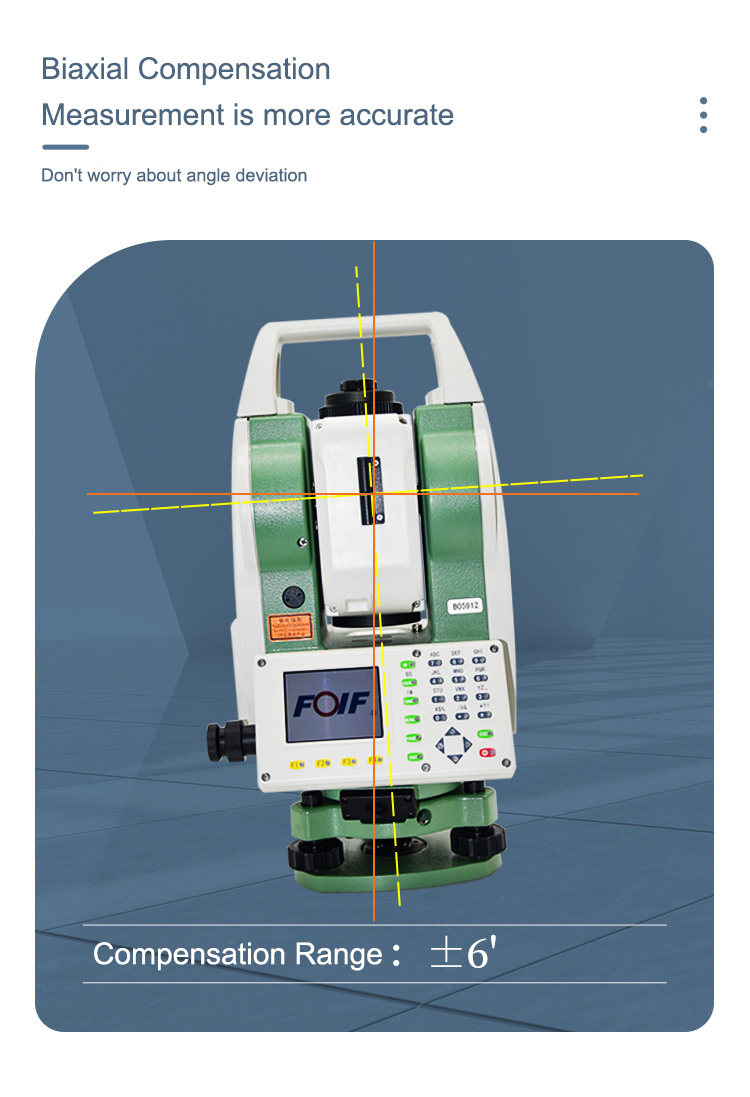

    Compensation MethodSingle Axis CompensationBiaxial CompensationSingle Axis Compensation
    Other
    Waterproof and Dustproof GradeIP66IP55IP66
    CommunicationR5-232C
    USB (optional)
    SD card (optional)
    Bluetooth (optional)
    R5-232C
    USB
    SD card
    Bluetooth (optional)
    RS-232C
